MV 1380 is a medium-sized fixed-column vertical machining equipment. It not only satisfies drilling and tapping, but also meets various cutting plane milling processes. It is suitable for machining of auto parts and other heavy-cut precision industries. This model is equipped with a BT 50 spindle, which can meet certain heavy cutting requirements. At the same time, it has the dual advantages of three-axis heavy load of the machine tool. After the workpiece is clamped once, the machine tool can automatically and continuously complete milling, drilling, boring, expanding, reaming, and countersinking., tapping and other processes, after the optional CNC rotary table is added, 4- axis/ 5 -axis processing of complex parts can be performed.

This machine is suitable for multi-variety processing of complex parts such as medium and small boxes, plates, discs, shells, etc. It is widely used in auto parts, molds, valves, construction machinery, IT equipment, optical equipment, medical equipment and aerospace industries.

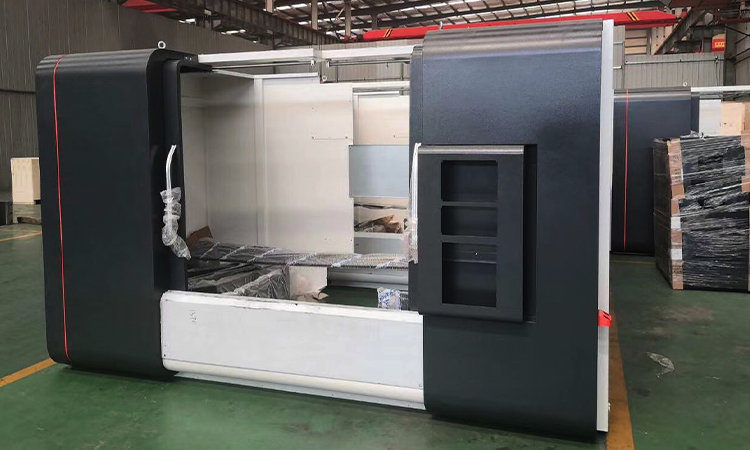

Whole machine: The whole machine is fixed by a column, which adopts a "herringbone"-shaped large-span structure, so that the overall coordination and stability of the bed body achieves high rigidity and stability, thereby ensuring the high performance and high precision of the whole machine. Cross slide moving structure. The whole machine has high rigidity, high stability and high reliability, fully enclosed protection, beautiful appearance, convenient operation and maintenance.

Spindle box: Taiwan 's BT50-155 spindle unit is used .

Drive: The three-axis motor is connected to a high-precision ball screw, and the three-axis transmission is stable. The ball screw is pre-stretched and installed to further improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt heavy-duty linear guide rails. The vibration of the machine tool is small when it is fed at high speed, and there is no crawling when it is fed at low speed , and it has high precision and stability.

System: Equipped with high-performance Japanese FANUC system, which ensures the long-term stability of the machine tool control, and also guarantees the general function and auxiliary function of CNC machining required by users .

Tool magazine: BT50 disc manipulator tool magazine is adopted , with reliable quality and stable performance . The tool magazine adopts manipulator to change the tool, the capacity of the tool magazine is 24 knives , and the tool changing time is fast.

The quality of all parts and components of machine tool processing and assembly conforms to the product drawings and related technical requirements, its safety standard conforms to the relevant provisions of GB15760-2004 "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools", and its precision standard conforms to GB/T17421-2000 "Machine Tool Inspection "General Rules" and JB/T8771-1998 " Machining Center Inspection Conditions " related regulations .
